Unmanned Mine by Matrix and TBEA: Ushering in the Era of Energy 4.0 (2/3)

Use Scenarios

Job Safety Clothing Detection

1. This feature automatically detects if workers have complied with safe clothing standards, which involves properly wearing helmets, masks, reflective work suits, etc.

2. Matrix has deployed its own high-performance object detection network: TDeNet. The system will monitor the condition of workers on site and trigger an alarm at the control centre when safe clothing standards are not complied with.

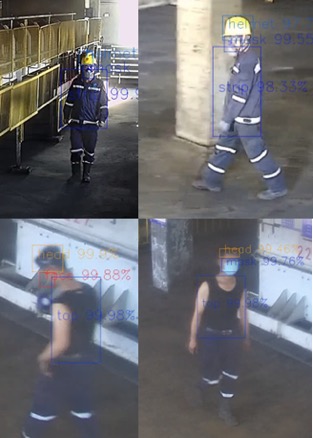

Automatic Analysis of Whether Workers Have Worn Helmets, Masks and Reflective Work Suits Correctly

Missing Bucket Teeth Recognition

This feature can detect when excavators working in a coal mine have missing bucket teeth.

1. Object detection algorithms will analyse input from live cams installed on the front of an excavator. An alarm will trigger once a missing bucket tooth is detected.

2. Object detection models are deployed on the edge computing hardware (Nvidia Jetson Xavier Nx) installed on all excavators.

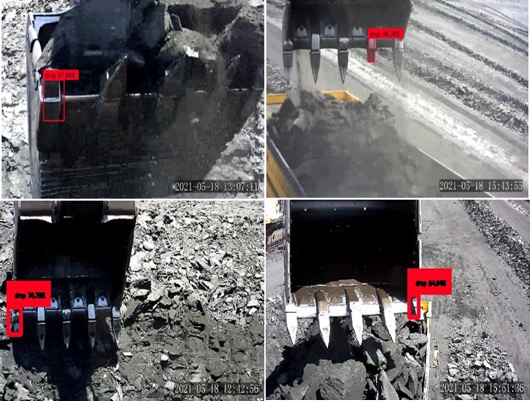

Missing Bucket Teeth Recognition and Alarm

Conveyor Belt Congestion Recognition

When AI detects the conveyor belt has ceased working, or that the coal storehouse entrance is stuck while the conveyor belt is still running, an alarm will trigger warning the workers on duty to take immediate action.

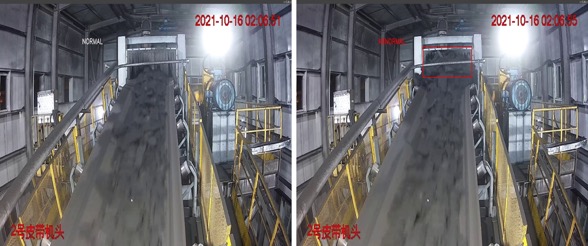

The left photo shows when the conveyor belt is functioning normally.

The right photo shows when the conveyor belt is stuck.

Magnet Condition Detection

To remove useless substances mixed with coal, the first step is to use a magnet to extract iron. The surface of the magnet needs to be regularly cleaned to guarantee its effectiveness. Matrix algorithms can assess if the magnet surface needs cleaning by analysing live camera feeds. Once unwanted matter is discovered on the magnet surface, an alarm will trigger causing the attention of workers on duty.

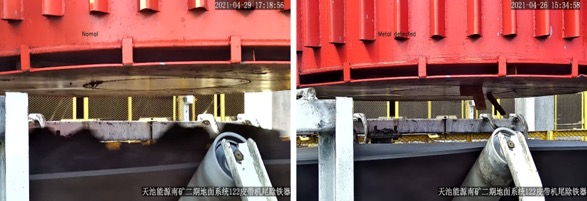

The left photo shows a magnet whose surface is clear.

The right photo shows a magnet whose surface is covered with iron objects.

Return Surface Detection

Coal from the mine is transported using conveyor belts, whose surface must be kept clean on the return journey so that the belt won’t be damaged by sharp objects. Matrix algorithms can analyse the condition of the returning belt surface using live camera feeds and trigger an alarm for workers on duty once anomalies are discovered.

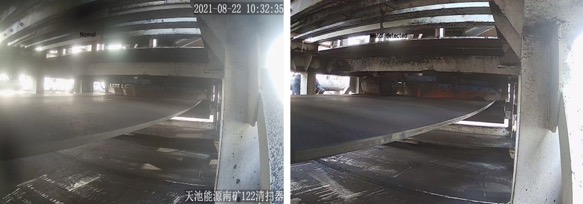

The left photo shows when the return side is clear.

The right photo shows when the return side is covered with some unwanted matter.
